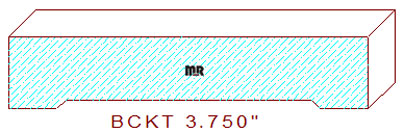

This Backout/Relief Cut Moulding Knife Design 3-3/4" measures 3.750" wide, with a .093" depth of cut on the bottom horizontal moulding cutter. This profile can literally be utilized on hundreds of our stylish Baseboard, Casing, or Chair Rail mouldings. This relief cut layout is comprised of a 2-3/4" wide by 3/32" deep plow flanked by forty-five degree chamfers, they transition into 1/2" wide straight fillets on each side. The maximum width this knife can mill is 4-1/2" wide, with the bottom moulder spindle positioned at .000" axially.
Take advantage of our specialized design skills, thirty years of experience, superior quality moulding templates and knives with exceptional value.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
