Backout/Relief Cut Moulding 3-3/4" - 2

Backout/Relief Cut Moulding 3-3/4" - 2

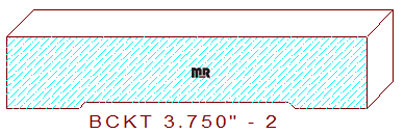

This Backout/Relief Cut Moulding Knife Design 3-3/4" - 2 measures 3.750" wide, with a .062" depth of cut on the bottom horizontal moulding cutters. This profile can literally be utilized on hundreds of our stylish Baseboard, Casing, or Chair Rail mouldings.

This relief cut layout is comprised of a 2-1/4" wide, by 1/16" deep plow, flanked by forty-five degree chamfers that transition into 3/4" wide straight fillets on each side of the pattern. The maximum width this knife can mill is 4-1/2" wide, with the bottom moulder spindle positioned at .000" axially.

Whether you own a Weinig, Leadermac, SCM or Kentwood moulder, our custom moulding knife designs will mill flawlessly on them all.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
