Backout/Relief Cut 4" - 7
Backout/Relief Cut 4" - 7

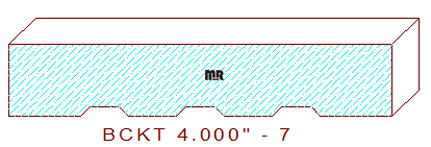

This backout 4" - 7 measures 4.000" wide. This detail is utilized on hundreds of our tongue & groove and crownprofiles.
This trapezoid style design comprises three 1/2" wide by 3/32" deep partial trapezoids, flanked by 1/2" fillets in the center, and 3/4" wide fillets on each side edge of the pattern. The maximum width this knife can mill is 3-3/4" wide when the cutterhead is positioned at .000" axially.
Download all our free Dxf files, and see how easily the services we provide can increase productivity and reduce production costs.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.093
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$290.00
Total:
$290.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$309.00
Total:
$309.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$337.50
Total:
$337.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
