Backout/Relief Cut Moulding 4-1/2" – 1

Backout/Relief Cut Moulding 4-1/2" – 1

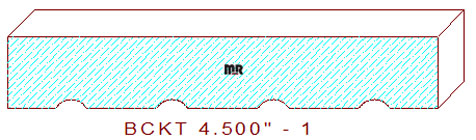

This Backout/Relief Cut Moulding Knife Design 4-1/2" – 1 measures 4.500" wide, with a .093" depth of cut on the bottom horizontal cutters. This profile can be used on many of our tongue & groove flooring details and mid sized crown mouldings.

This fluted relief cut design is comprised of four, 3/8" wide by 3/32" deep plows positioned 1-1/16" on center, with a 1/2" wide horizontal fillet positioned on each side edge of the pattern. The maximum width this knife can mill is 5-1/4" wide, with the bottom moulder spindle positioned at .000" axially.

We provide the cut steel size on all our moulding knife designs, this specialized feature allows you to be able to have the correct size bar of knife steel in house, before you start knife grinding procedures and moulding production.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
