Backout/Relief Cut Moulding 4-1/2" - 2

Backout/Relief Cut Moulding 4-1/2" - 2

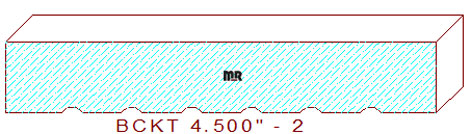

This Backout/Relief Cut Moulding Knife Design 4-1/2" - 2 measures 4.500" wide, with a .062" depth of cut on the bottom horizontal moulding cutters. This detail can be utilized on hundreds of our tongue & groove, door jambs, and crown mouldings.

This trapezoid design is comprised six 7/32" wide by 1/16" deep partial trapezoids, flanked by 13/32" fillets in the center, and 37/64" wide fillets on each side edge of the pattern. The maximum width this knife can mill is 5-1/4" wide, if the bottom moulder spindle is positioned at .000" axially.

We offer thousands of innovative moulding profiles designed to save valuable time and money in your demanding milling production schedule.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
