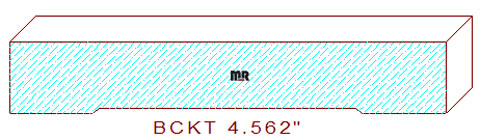

This backout 4-9/16" measures 4.562" wide. The profile is used on many of our casing and chair rail patterns. The symmetrical design comprises a 2-13/16" wide by 1/16" deep plow flanked by forty-five-degree bevels that transition into 7/8" wide straight fillets on each side. The maximum width this design can mill is 5-5/16" in width when the cutterhead is positioned at .000" axially.
