Backout/Relief Cut Moulding 4-9/16" - 1

Backout/Relief Cut Moulding 4-9/16" - 1

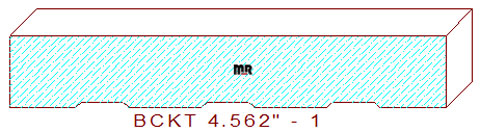

This Backout/Relief Cut Moulding Knife Design 4-9/16" - 1 measures 4.562" wide, with a .093" depth of cut on the bottom horizontal cutters.

This detail can be used on many of our casing and chair rail mouldings. The symmetrical design is comprised of a 3-1/16" wide by 3/32" deep plow flanked by forty-five degree bevels that transition into 3/4" wide straight fillets on each side. The maximum width these knives can mill is 5-5/16" wide when the bottom moulder spindle positioned at .000" axially.

Ever wonder why some mouldings look and feel better than others in the industry; read our article on Moulding Knife Marks to see how feed rates and rpm can directly affect the quality of your finished mouldings.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
