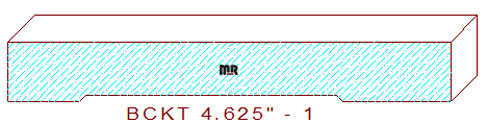

This Backout/Relief Cut Moulding Knife Design 4-5/8" - 1 measures 4.625" wide, with a .062" depth of cut on the bottom horizontal cutters.
This offset detail can be used on many of our base moulding patterns. The asymmetrical layout is comprised of a 3" wide by 1/16" deep plow flanked by forty-five degree bevels that transition into a 3/4" wide fillet on one side, and a 1-1/8" wide straight fillet on the opposite side. This area of the detail is generally the bottom side of the baseboard, it will provide ample space for nailing the pattern during installation, while reducing splitting that might be caused by nailing into the voided area on the back side of the pattern. The maximum width this set of cutters is able to mill is 5-3/8" wide, when the bottom moulder spindle positioned at .000" axially.
To help better understand why these types of cuts are used in moulding design, please refer to our helpful article titled Moulding Backout Relief Cuts. After reading this commentary, we trust you will find the appropriate style design for your moulding.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
