Backout/Relief Cut Moulding 4-3/4" – 1

Backout/Relief Cut Moulding 4-3/4" – 1

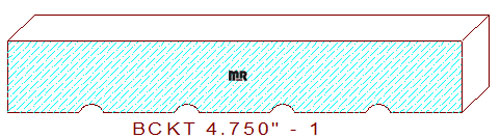

This Backout/Relief Cut Moulding Knife Design 4-3/4" – 1 measures 4.750" wide, with a .093" depth of cut on the bottom horizontal cutters.

This relief cut profile can be used on many of our tongue & groove flooring and siding patterns, as well as our mid-sized crown mouldings. This fluted backout is comprised of four, 1/4" wide by 3/32" deep semi-circle plows, flanked by four 3/4" wide fillets in the center and edges of the pattern. The maximum width these cutters can mill is 5-1/2" wide, with the bottom moulder spindle positioned at .000" axially.

We provide the cut steel size on all our moulding knife designs, this specialized feature allows you to be able to obtain the correct size of knife steel before you start knife grinding procedures and moulding production.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
