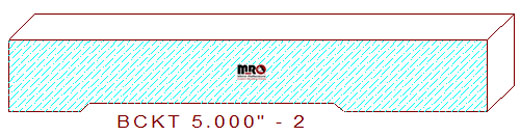

This Backout/Relief Cut 5" - 2 measures 5.000" wide, with a .093" depth of cut on the bottom horizontal moulding cutter. This profile is designed to be utilized on many of our medium width sized baseboard mouldings.
The offset profile is comprised of a 2-3/4" wide, by 3/32" deep plow, with forty-five degree chamfers that transition into a 3/4" wide horizontal fillet on one side of the pattern, and a 1-1/2" wide fillet on the opposite side. This area of the design is generally the bottom side of the baseboard, it will provide ample space for nailing the pattern during installation, while reducing splitting issues that might be caused if nailing into the void area on the back side of the pattern. The maximum width this backout could mill is 5-3/4" wide, with the moulder spindle positioned at .000" axially.
Whether you own a Weinig, Leadermac, SCM or Kentwood moulder, our custom moulding knife designs will mill flawlessly on them all.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
