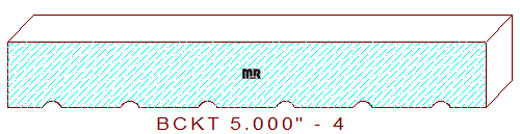

This Backout/Relief Cut 5" - 4 measures 5.000" wide, with a .063" depth of cut on the bottom horizontal cutters.
This relief cut profile can be used on many of our tongue & groove flooring details and mid sized crown moulding designs. The fluted pattern is comprised six, 3/16" wide by 1/16" deep semi-circle plows flanked by 5/8" wide fillets in the center, with a 3/8" wide horizontal fillet positioned on each side edge of the pattern. The maximum width this knife can mill is 5-3/4" wide, with the bottom moulder spindle positioned at .000" axially.
We provide the cut steel size on all our moulding knife designs, this specialized feature allows you to be able to have the correct size bar of knife steel in house, before you start knife grinding procedures and moulding production.
