Backout/Relief Cut Moulding 5" - 5

Backout/Relief Cut Moulding 5" - 5

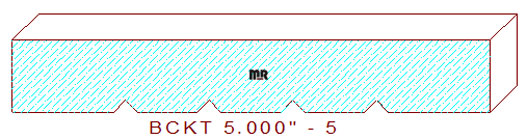

This Backout/Relief Cut 5" - 5 measures 5.000" wide, with a .125" depth of cut on the bottom horizontal cutters.

This relief cut profile can be used on many of our tongue & groove flooring and siding details, as well as our mid-sized crown moulding patterns. The backout is comprised of four, 1/4" wide by 1/8" deep triangular shaped plows, flanked by 5/8" wide fillets in the center, and a 1-1/16" wide fillet on each side edge of the pattern. The maximum width this set of knives can mill is 5-3/4" wide, with the bottom moulder spindle positioned at .000" axially.

We offer many exceptional grades of quality high-speed steel and carbide in various size widths for grinding all our moulding profile designs.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
