Backout/Relief Cut Moulding 5-1/8"

Backout/Relief Cut Moulding 5-1/8"

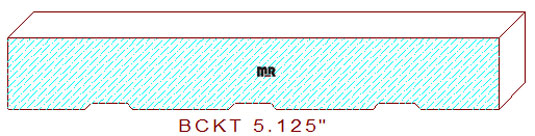

This Backout/Relief Cut Moulding 5-1/8" measures 5.125" wide, with a .062" depth of cut on the bottom horizontal cutters.

The backout can be utilized on many of our tongue & groove flooring and siding patterns, door jambs, and stylish crown mouldings. The profile design is comprised of three 1/2" wide by 1/16" deep trapezoids, flanked by 1" wide fillets in the middle, and 13/16" wide fillets on each side edge of the pattern. The maximum width these knives can cut is 5-7/8" wide, when the bottom horizontal moulder spindle is positioned at .000" axially.

Our purple colored ceramic blend grinding wheel hogging at 2000 rpm, and, at a twenty-five degree back clearance angle, will rough grind a set of high-speed steel moulding knives in a minimal amount of time.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
