Backout/Relief Cut Moulding 5-3/4"

Backout/Relief Cut Moulding 5-3/4"

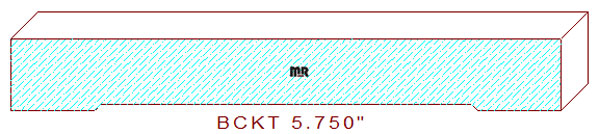

This Backout/Relief Cut Moulding 5-3/4" measures 5.750" wide, with a .063" depth of cut on the bottom horizontal set of cutters. This profile can be utilized on hundreds of our casings and chair rail mouldings.

The profile is comprised of a 4" wide by 1/16" deep plow, flanked with forty-five degree chamfers that transition into a 7/8" wide horizontal fillet on each side of the pattern. The maximum width these knives can mill is 6-1/2" wide, when the bottom moulder spindle is positioned at .000" axially.

We provide the cut steel size on all our moulding knife designs, this specialized feature allows you to be able to have the correct size bar of knife steel in house before you start knife grinding procedures and moulding production.
