Backout/Relief Cut 5-7/8"

Backout/Relief Cut 5-7/8"

Backout/Relief Cut 5-7/8"

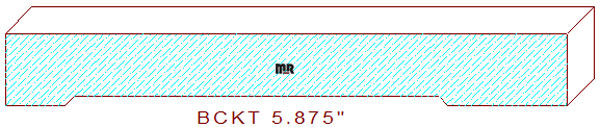

This 5-7/8" backout measures 5.875" wide. The offset profile comprises a 4" wide by 3/32" deep plow flanked with forty-five-degree chamfers that transition into a 5/8" wide horizontal fillet on the inside and a 1-1/4" wide fillet on the outside edge. This area of the design is the bottom side of the baseboard. It will provide enough space for attaching the pattern during installation while reducing splitting issues that might be caused when nailing into the voided area on the backside. This backout's maximum width is 6-5/8" wide, with the cutterhead positioned at .000" axially. This profile is utilized on many of our medium-sized width baseboard patterns.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 5.750
Depth of Cut: 0.093

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$368.00
Total:
$368.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$394.00
Total:
$394.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$420.00
Total:
$420.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
