Backout/Relief Cut 5-7/8" - 1

Backout/Relief Cut 5-7/8" - 1

Backout/Relief Cut 5-7/8" - 1

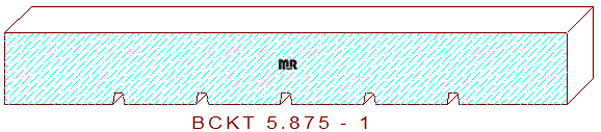

This 5-7/8" - 1 saw kerf backout measures 5.875" wide. The custom design comprises five 1/8" wide by 1/8" deep grooves divided by 3/4" wide horizontal fillets in the center, with a 1-1/8" broad line on each side edge. The maximum width this backout can mill is 6-5/8" wide when the cutterhead is positioned at .000" axially. This kerf style relief cut is used on many of our thicker sized tongue & groove flooring and decking designs, door jambs and some wider crown profiles.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 5.875
Depth of Cut: 0.125

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$374.25
Total:
$374.25
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$400.75
Total:
$400.75
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$427.25
Total:
$427.25
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
