Backout/Relief Cut Moulding 6" - 2

Backout/Relief Cut Moulding 6" - 2

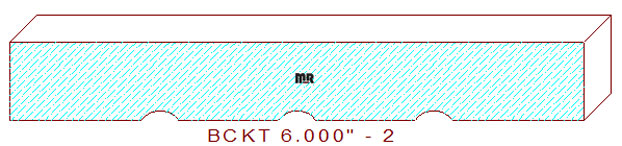

This Backout/Relief Cut Moulding 6" - 2 measures 6.000" wide, with a .093" depth of cut on the bottom horizontal moulding cutter. This profile can be utilized on many of our tongue and groove profiles like flooring, siding, interior door jambs, etc. (search by thickness dimensions).

The design layout is comprised of three shallow 1/4" radius plows, flanked by 1-3/32" wide fillets in the center, and 1-3/8" wide fillets on each side edge of the pattern. The maximum width this backout knife can mill is 6-3/4" wide, that’s if the bottom moulder spindle is positioned at .000" axially.

If you have any questions or concerns about knife grinding procedures for any of our moulding designs, please contact us we would be honored to assist you.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
