Backout/Relief Cut Moulding 6" - 3

Backout/Relief Cut Moulding 6" - 3

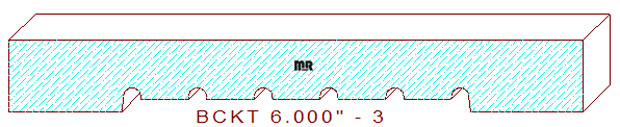

This Backout/Relief Cut Moulding 6" - 3 measures 6.000" wide, with a .250" depth of cut on the bottom horizontal moulding cutter. This profile can be utilized on some of our thicker tongue and groove decking and siding profiles, interior/exterior door jambs, and more.

The design layout is comprised of six 3/32" radius plows, flanked by 11/16" on center wide fillets, with 1-3/16" wide fillets on each side edge of the pattern. The maximum width this backout knife can mill is 6-3/4" wide, that’s if the bottom moulder spindle is positioned at .000" axially. If you like this relief cut design but it is a little too big in width for your application, we have a smaller version of this same profile Backout/Relief Cut 4.000" - 5 available for your review.

Please review some of our helpful moulder and knife grinding articles, they will assist you in many aspects of moulder set up and knife grinding procedures. These commentaries were written to help you be more familiar with the machinery, while making your job a little easier in the process.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
