Backout/Relief Cut Moulding 6" - 5

Backout/Relief Cut Moulding 6" - 5

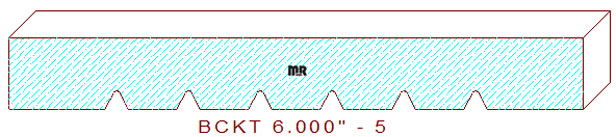

This Backout/Relief Cut Moulding 6" - 5 measures 6.000" wide, with a .188" depth of cut on the bottom horizontal moulding cutter. This relief cut profile can be utilized on many of our thicker sized tongue & groove, door jambs, and crown moulding profiles.

This custom shaped design is comprised of six 1/4" wide, by 3/16" deep triangular plows, flanked by 1/2" wide straight fillets in the center, and 1" wide fillets on each side of the pattern. The maximum width these backout knives can mill is 6-3/4" wide, that’s when the bottom moulder spindle is positioned at .000" axially.

To help better understand why these types of cuts are used in moulding design, please refer to our helpful article titled Moulding Backout Relief Cuts. After reading this commentary, we trust you will find the appropriate style design for your moulding.
