Backout/Relief Cut Moulding 6" - 9

Backout/Relief Cut Moulding 6" - 9

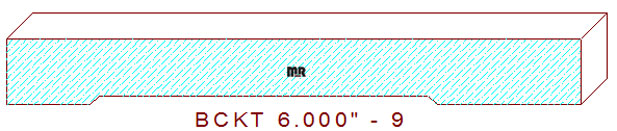

This Backout/Relief Cut Moulding 6" - 9 measures 6.000" wide, with a .093" depth of cut on the bottom horizontal moulding cutters. This profile is designed to be utilized on hundreds of our medium sized baseboard mouldings.

The offset profile is comprised of a 3-5/8" wide, by 3/32" deep plow with attached forty-five degree chamfers, they transition into a 7/8" wide horizontal fillet on the inside edge of the detail, and a 1-1/2" wide fillet on the outside edge of the pattern. This area of the design is typically the bottom side of the baseboard, this will provide enough space for nailing the pattern during installation, while reducing splitting that may occur from nailing the base moulding thru the voided area on the back side of the profile. The maximum width this backout could mill is 6-3/4" wide when the horizontal moulder spindle is positioned at .000" axially.

We offer many exceptional grades of quality high-speed steel and carbide in various size widths for grinding all these moulding profile designs.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
