Backout/Relief Cut 6-3/4" - 4

Backout/Relief Cut 6-3/4" - 4

Backout/Relief Cut 6-3/4" - 4

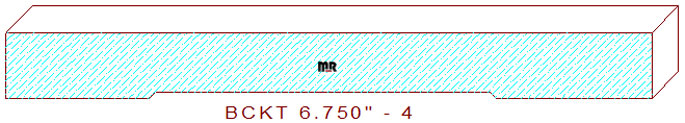

This 6-3/4" - 4 backout measures 6.750" in width. The offset profile contains a 3-5/8" wide by 1/16" deep plow with attached forty-five-degree chamfers, the bevels transition into a 1-1/2" wide horizontal fillet on the left edge, and a 1-5/8" wide fillet on the right edge of the pattern. This area of the design is typically the bottom side of the baseboard; there is ample enough space for nailing the pattern during installation while reducing splitting that could occur from nailing the base molding through the voided area on the backside of the profile. The maximum width this backout could mill is 7-1/2" wide when the bottom horizontal cutter head is positioned at .000" axially.

Looking for a unique pattern to enhance the architectural style of your current project? Please send us a sketch; custom profile design is our specialty. Experience the elegant beauty we can create; from your outlined idea concepts and our vast knowledge of the woodworking industry.

The present-day combined high-speed steel knives & template prices are listed below for quoting purposes.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 6.750
Depth of Cut: 0.063

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$418.00
Total:
$418.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$448.00
Total:
$448.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$478.00
Total:
$478.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
