Backout / Relief Cut Moulding 7-1/4"

Backout / Relief Cut Moulding 7-1/4"

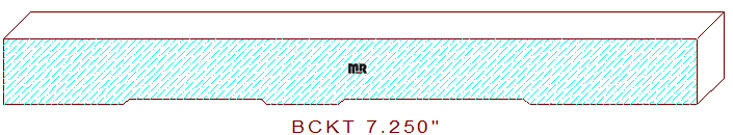

This double backout/relief cut moulding 7-1/4" measures 7.250" wide, the detail can be utilized on many of our baseboard and larger sized chair rail moldings. The two plow design is comprised of a 1-1/4" wide straight line segment on the left, connected to a 1-1/2" wide plow flanked by forty-five degree chamfers, attached to a 3/4" wide flat section in the center that joins to a 2" wide by 1/16" deep plow also flanked with forty-five degree bevels, merged with a 1-3/4" wide flat line on the right side of the image. The maximum width this backout could mill is 8" wide, when the bottom horizontal cutter head is positioned at .000" axially.

To help better understand why these types of cuts are used in moulding manufacturing, please refer to our helpful article titled Moulding Backout Relief Cuts. After reading this commentary, we trust you will find the appropriate style design for your custom profile.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 7.250" / Depth of Cut = .063" (bottom cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
