Backout/Relief Cut 7-1/4" - 3

Backout/Relief Cut 7-1/4" - 3

Backout/Relief Cut 7-1/4" - 3

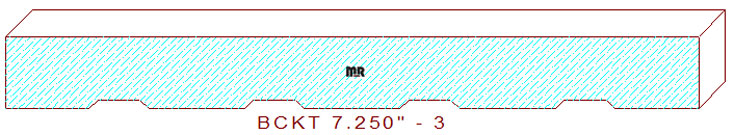

This universal backout 7-1/4" - 3 measures 7.250" in width. This symmetrical pattern comprises four 5/8" wide by 3/32" deep trapezoid-shaped grooves flanked by 1" wide straight lines in the center, with a 7/8" broad line on each side edge of the pattern. The maximum width these knives can mill is 8" wide when the cutterhead is positioned at .000" axially.

Be sure to check out a few additional designs for different rooms in your beautiful home or office. Our moulding catalog has over fifteen thousand five hundred patterns to review. Our eminence derives from over thirty-five years of experience and the superior functionality of all our custom knife profiles.

The up-to-date combined high-speed steel knives & template prices are listed below for quoting purposes.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 7.250
Depth of Cut: 0.093

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$443.00
Total:
$443.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$475.00
Total:
$475.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$507.00
Total:
$507.00
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
