Backout/Relief Cut 7-9/16"
Backout/Relief Cut 7-9/16"

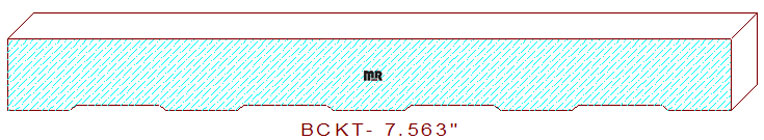

This 7-9/16" multi-plow backout measures 7.563" in width. The profile comprises four 1" wide by 1/16" deep plows, divided by 3/4" wide fillets in the center flanked by forty-five-degree slopes, with a 21/32" broad horizontal line on each side edge of the pattern. This backout/relief cut could mill the maximum width is 8-5/16" wide when the cutterhead is positioned at .000" axially.
Do you need steel bars for knives or other tool room supplies? Choose any of our quality high-speed knife steel or premium carbide; we generally can ship these items the same day. We are a Weinig authorized tooling agent. We offer some of the highest quality cutter heads and tooling supplies available in our industry.
The active combined high-speed steel knives & template prices are listed below for quoting purposes.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 7.562
Depth of Cut: 0.062
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$475.22
Total:
$475.22
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$508.47
Total:
$508.47
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$558.34
Total:
$558.34
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
