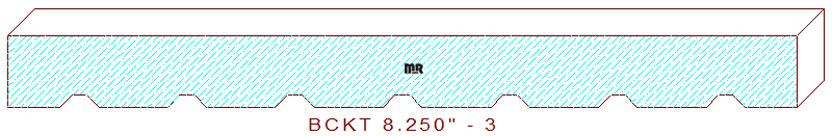

This 8-1/4" Backout/Relief Cut Moulding - 3 measures 8.250" wide, with a .125" depth of cut on either the top or bottom horizontal profile knives. This relief cut profile can be used on many of our tongue & groove flooring and decking patterns, door jambs, and some crown moulding profiles.
The design is comprised of seven, 13/32" wide by 1/8" deep trapezoid shaped plows, flanked by six 23/32" wide straight fillets in the center, with a 35/64" wide fillet on each side edge of the pattern. The maximum width these knives can mill is nine inches wide when the bottom moulder spindle is positioned at .000" axially.
Do you realize how important proper tool balance is to your current moulding operation? Find out more on how critical it is to have balanced cutter head, knives, screws, and gibs, and the problems they create if you neglect to focus on this task.
