8-1/2" Double Backout/Relief Cut Moulding

8-1/2" Double Backout/Relief Cut Moulding

This 8-1/2" Double Backout/Relief Cut Moulding measures 8.500" wide, with a .078" depth of cut on the bottom horizontal profile knives. The two plow profile can be utilized on many of our stylish and creative baseboard, casing, or chair rail mouldings.

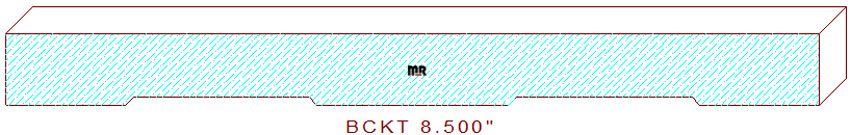

The symmetrical profile is comprised of two, 2" wide by 3/64" deep plows flanked by forty-five degree bevels that are divided by a 2" wide horizontal fillet in the center and a 1-1/4" wide straight line on the side edge of the pattern. The maximum width these knives can mill is 9-1/4" wide with the bottom horizontal moulder spindle positioned at .000" axially.

Our precise cad drawings contain plenty of important information that will assist you during setup and milling of this moulding profile. Our acrylic templates also provide sufficient blend areas on the knives so you will never realize where one moulding cutter begins or ends, this specific design feature will substantially increase moulding yield during the milling process.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
