Backout/Relief Cut Moulding 8-5/8" - 1

Backout/Relief Cut Moulding 8-5/8" - 1

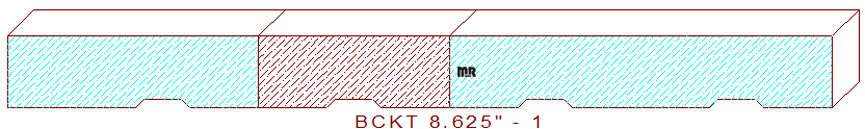

This Backout/Relief Cut Moulding 8-5/8" - 1 measures 8.625" wide, with a .093" depth of cut on either the top or bottom horizontal profile knives. This relief cut profile can be used on many of our tongue & groove flooring & decking patterns, door jambs, and some crown moulding patterns.

The asymmetrical design is comprised of four 37/64" wide by 3/32" deep trapezoid shaped plows, flanked by three 27/64" wide straight fillets in the center, with a 1-11/32" wide fillet on the left side, and a 23/32" wide line on the right side of the pattern. The maximum width these knives can mill is 9-1/4" wide when the bottom moulder spindle is positioned at .000" axially.

Do you realize how important proper tool balance is to your current moulding operation? Find out more on how critical it is to have balanced cutter head, knives, screws, and gibs, and the problems they create if you neglect to focus on this task.
