Backout/Relief Cut 8-5/8" - 2

Backout/Relief Cut 8-5/8" - 2

Backout/Relief Cut 8-5/8" - 2

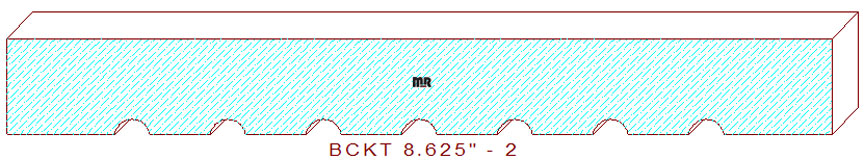

This large 8-5/8" - 2 backout measures 8.625" in width. The symmetrical profile comprises seven 3/8" wide by 3/32" deep half circles, divided by 5/8" broad lines in the center and 1-5/16" broad sections on both sides of the pattern. The maximum width these knives can mill is 9.063" wide, with the bottom cutterhead positioned at .000" axially.

Whether you have a Weinig R-960 profile grinder or a CNC Technology template-making machine, our innovative profiles will save valuable time and money in your demanding production schedule.

The up-to-date combined high-speed steel knives & template prices are listed below for quoting purposes.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 8.625
Depth of Cut: 0.156

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$511.75
Total:
$511.75
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$549.25
Total:
$549.25
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
Not Needed
$586.75
Total:
$586.75
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
