Backout/Relief Cut Moulding 8-5/8" - 4

Backout/Relief Cut Moulding 8-5/8" - 4

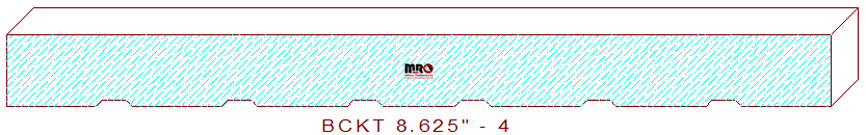

This Multi Plow Backout/Relief Cut Moulding 8-5/8" - 4 measures 8.625" wide, with a .062" depth of cut on the top or bottom set of moulding blades. This relief cut profile can be utilized on many of our tongue & groove flooring designs, interior & exterior door jambs, and some of our larger width crown moulding patterns.

The symmetrical profile is comprised of six, 3/8" wide by 1/16" deep trapezoid shaped plows, divided by 3/4" wide horizontal line in the center, and 15/16" wide fillets throughout the remainder of the pattern. The maximum width this backout/relief cut could mill is 9.375" wide when the bottom horizontal spindle is positioned at .000" axially.

Please review some of our helpful moulder and knife grinding articles, they will assist you in many aspects of machine set up and knife grinding procedures. These commentaries were written to help you be more familiar with the machinery, while making your job a little easier in the process.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
