Bar Rail 5-1/4" - 1

Bar Rail 5-1/4" - 1

Bar Rail 5-1/4" - 1

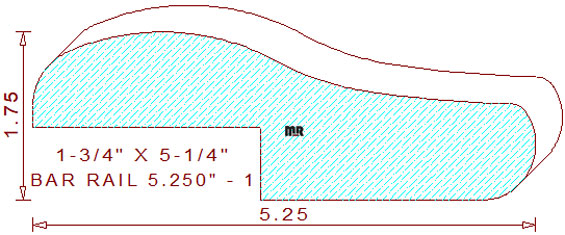

This custom bar rail 5-1/4" - 1 measures 5.250" wide by 1.750" thickness. This detail will require eight quarter lumber to properly mill this pattern on industrial machinery. The profile consists of four different sized tangent radiuses forming a cs-shaped curvature with a bullnose front edge at a 1" thickness dimension, the backside rabbet for the countertop measures 2-3/8" wide by 3/4" tall.

This cad generated dxf file contains three skillfully drafted template designs for creating knives for this creative bar rail pattern. All our innovative profiles have a proven unbroken cnc (computer numerical control) tool path expediting the production process.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction-decimal-millimeter chart, place it on the machinery to help operators save time and increase accuracy during setup.

Width = 5.250" / Depth of Cut = 1.000" (top knives) & .750" (bottom cutters).

Thickness = 1.750" / Depth of Cut = .693" (left knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
