Bar Rail 5-13/32"

Bar Rail 5-13/32"

Bar Rail 5-13/32"

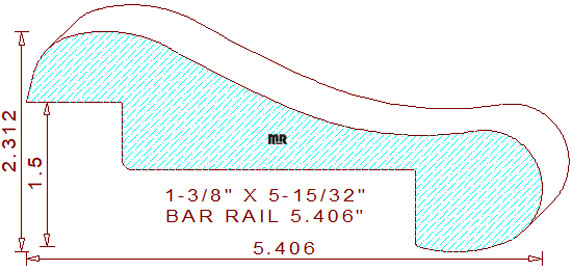

This attractive bar rail 5-13/32" maintains two sets of measurements. The first set is the milling dimensions at 5-15/32" wide by 1-3/8" thickness, designed to be milled parallel to machine bedplates and hold down shoe. This pattern can be milled from six-quarter lumber; any feed roller marks remaining on the wood after milling would be located on the back side of the pattern, which is not visible once installed. The second set of dimensions illustrated in the above image will assist you in preparing the sub-top and countertop for installation.

We offer thousands of inspirational architectural moldings that will shape the contour of every exquisite room in your client's beautiful home. Download all our free moulding dxf files, and see how easily the services we provide can increase productivity while reducing manufacturing costs. One thing we have in common is our passion for excellence and our quest to be paramount artisans for all our clients.

For knife quoting purposes use the calculator below; we have added only the important measurements, determine the cutters you need. A brief detailed explanation of how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction-decimal-millimeter chart and place it on the machinery to help operators save time and increase accuracy during setup.

Width = 5.468" / Depth of Cut = .843" (top knives) & .817" (bottom cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
