Bar Rail 5-1/2"

Bar Rail 5-1/2"

Bar Rail 5-1/2"

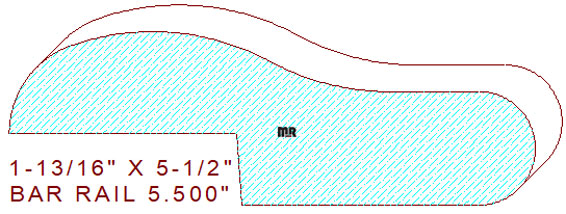

This stylish bar rail 5-1/2" measures 5.500" wide by 1.812" thickness, requiring eight-quarter lumber to mill this profile. The sleek design is free-flowing with a smooth transition of three tangent radiuses to the 1-3/16" thickness bullnose on the front edge, the bottom is rabbeted 2-3/8" wide by 3/4" tall for the countertop. The cad-generated dxf file contains three skillfully drafted template knife designs for creating blades for this creative bar rail pattern. All our cad profiles have a proven unbroken CNC (computer numerical control) tool path expediting the production process.

Are you a moulding manufacturer? If so, please add your company to our millwork suppliers map. This valuable resource will help potential customers experience the craftsmanship of your creative woodworking shop. Did you know you can connect our moulding catalog to your website? It's free, you don't even have to be our client, and you can't offer customers profiles they don't know are available.

For knife quoting purposes use the calculator below; we have added only the important measurements to determine the cutters you need. A brief detailed explanation of how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction-decimal-millimeter chart and place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 5.500" / Depth of Cut = 1.187" (top knives) & .750" (bottom cutters).

Thickness = 1.812" / Depth of Cut = .750" (right blades).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
