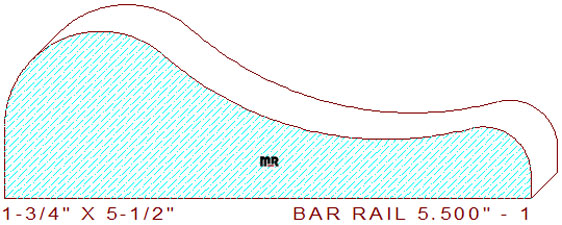

This flat bottom bar rail 5-1/2" - 1 measure 5.500" wide by 1-3/4" thickness, requiring eight-quarter lumber to mill this pattern on an industrial-style molder. The elegant profile is comprised of a 3-1/2" radius concave armrest in the center, tangent off of a 1" radius arc on the left and a 1/2" eased edge on the right leaving a 3/4" thickness dimension on the smaller side of the pattern. We suggest milling some saw kerf's on the bottom side of the molding to minimize cupping of the pattern due to the large amount of wood removed in detail.

We invite you to search for other design ideas for your elegant home or office; we have over 15,000 alternative profile options for you to choose from; alter the search parameters to view. Our eminence derives from over thirty-five years of experience and the superior functionality of all our custom knife profiles.

For knife quoting purposes click to open the calculator below; we have added only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation of how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction-decimal-millimeter chart and place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.500" / Depth of Cut = 1.188" (top knives.)

Thickness = 1.750" / Depth of Cut = .687" (right blades.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
