Bar Rail Moulding 6-21/32"

Bar Rail Moulding 6-21/32"

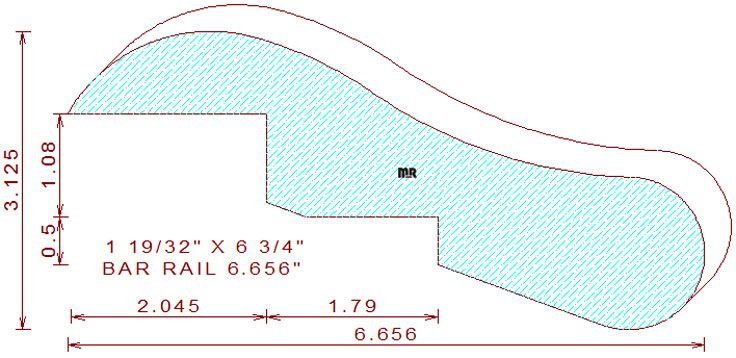

This Bar Rail Moulding 6-21/32" has two sets of measurements, one set of dimensions and the for installation, the rabbets on the underneath side are milled for the countertop and subtop. The milling dimensions are 6-3/4" wide by 1-19/32" thickness, it will require eight quarter lumber to mill this product with four profile milling stations on an industrial moulder, right, left, top and bottom spindles to successfully produce this design. Our downloadable dxf file contains all four designs needed, the high points are positioned on the same plane for even for hold down (pressure shoe element) purposes. Although the profile is complex and looks difficult to manufacture, our experience in moulding design will make this profile no harder to manufacture than a simple case moulding.

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $10.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
