Bar Rail 6-15/16"

Bar Rail 6-15/16"

Bar Rail 6-15/16"

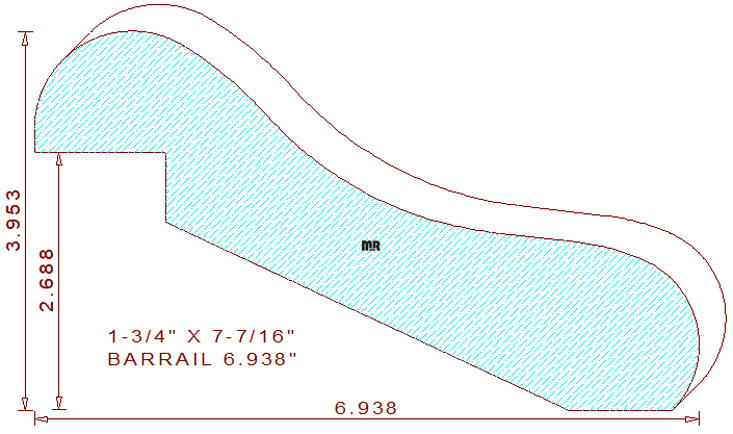

This custom 6-15/16" bar rail has two sets of measurements, the first being the milling dimensions at 7-7/16" wide by 1.750" thickness requiring the pattern to be milled from eight-quarter lumber. The second set of dimensions are illustrated in the above image to assist you in preparing the countertop for installation.

This Cad-generated dxf file contains four professionally designed profile template drawings with all the necessary information to create cutters for this large bar rail pattern. We always provide good blend areas in the knives, so no one will ever realize where one moulding cutter begins or ends. Two high points in the detail were deliberately positioned on the same plane. Our specialized design features will assure excellent hold-down conditions while milling this detail, providing the pressure shoe is parallel to the machine's bed plates.

For knife quoting purposes use the calculator below; we have added only the important measurements to determine the cutters you need. A brief detailed explanation of how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction-decimal-millimeter chart and place it on the machinery to help operators save time and increase accuracy during setup.

Width = 7.437" / Depth of Cut = .600" (top knives) & .656" (bottom cutters).

Thickness = 1.750" / Depth of Cut = .508" (right blades) & .474" (left knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
