Thinking about building an enclosed tool room for the profile knife grinder, template making machine and a place to store all your moulding templates and knives? Please read our helpful commentary on securing the knife grinder's linear bearings, this small simple task can save you thousands of dollars in repair cost from not securing the table bearings before moving.
For knife quoting purposes use the calculator below, we have added only the important measurements. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

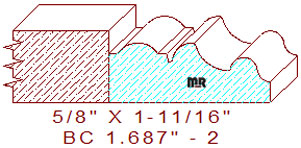

Width = 1.687" / Depth of Cut = .408" (top knives).
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
