Base Cap 1-3/4"

Base Cap 1-3/4"

Base Cap 1-3/4"

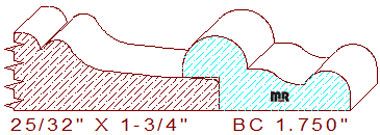

This base cap 1-3/4" measures 1.750" wide by 25/32" thickness. The profile is composed of an 11/16" wide half-round bead connected to a radius fillet. A cove in the center, a 1/2" wide half-round bead is positioned on the design's thinner side. The rabbet on the back side is 3/8" wide and can be adjusted in height during the milling process. On the left set of blades, we utilize a full 2.375"/60mm cutter head for the rabbet; this allows for multiple axial adjustments on a wide range of patterns.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.375
Top Cutter Head
Width: 1.750
Depth of Cut: 0.750
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$161.75
$178.00
Not Needed
Total:
$339.75
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$171.25
$188.00
Not Needed
Total:
$359.25
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$180.75
$198.00
Not Needed
Total:
$378.75
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
