Base Cap Moulding 1-3/4" - 16

Base Cap Moulding 1-3/4" - 16

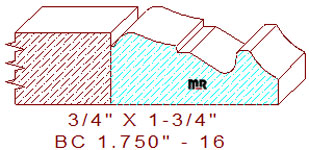

This ornate base cap moulding 1-3/4" - 16 measures 1.750" wide by .750" thickness allowing the pattern to be milled from four quarter lumber. The intricate profile is comprised from a 3/64" wide horizontal line on the left, this will create a quirk when applied to a piece of surfaced four sides lumber (S4S), connected to a two tangent radius cyma reversa with a small notched fillet, joined to a tapered scotia that transitions into a raised fillet with a 5/8" cove on the thin side of the design.

Architects, interior designers, lumber mills, and manufacturers have been utilizing our vast variety of creative designs for years, we trust you will find that special profile to enhance the architectural style of your client's home. If you have any questions or concerns about knife grinding procedures for any of our profiles, please contact us, we would be honored to assist you.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 1.750" / Depth of Cut = .658" (top knives.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
