Base Cap Moulding 1-3/4" - 2

Base Cap Moulding 1-3/4" - 2

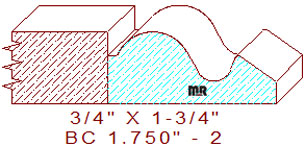

This standard base cap moulding 1-3/4" - 2 measures 1.750" wide by .750" thickness, enabling the pattern to be machined from four quarter lumber. The lovely profile is comprised of a deep sloping cyma reversa in the center, flanked by a 3/32" wide by 1/4" deep line segment on the left side with a 1/2" wide beveled edge on the opposite side. We offer a couple of other similar profiles in the same width for your review and consideration, base cap 1.750" - 17 and base cap 1.750" - 18.

With over 15,000 profile designs in our search by size moulding catalog there is something for everyone’s creative architectural style. Utilize our manufacturers map listed by states to help you locate a local mill in your area to produce this creative pattern.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 1.750", Depth of Cut = .577" (top knives).

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
