Base Cap 2" - 15
Base Cap 2" - 15

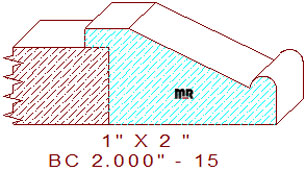

This rabbeted base cap 2" - 15 measures 2.000" wide by 1.000" thickness, requiring the use of five-quarter lumber for milling on an industrial-style molder. The beveled profile is composed of a 15/32" broad flat line on the top left, attached to a twenty-six degree angled line that transitions down to a 9/32" wide half round bead on the right side of the pattern. The backside rabbet dimension is 1/4" wide by 13/16" tall but can be adjusted in height for any thickness of lumber with a simple axial adjustment of the left cutter head on the machinery.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 1.000
Depth of Cut: 0.250
Top Cutter Head
Width: 2.000
Depth of Cut: 0.787
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$134.00
$197.00
Not Needed
Total:
$331.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$141.00
$208.00
Not Needed
Total:
$349.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$151.50
$224.50
Not Needed
Total:
$376.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
