Base Cap 2-3/16"
Base Cap 2-3/16"

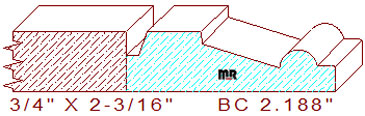

This embellished base cap 2-3/16" measures 2.188" wide by .750" thickness, allowing machining from four-quarter lumber. The decorative profile is composed of a 1/8" wide line segment at a 3/8" thickness dimension on the left, this creates a quirk when applied to a piece of S4S (surfaced four sides) lumber, connected to a seventy degree beveled line that joins to a 9/16" wide by 1/8" tall raised fillet, attached to a 13/16" broad down-sloping line that merges with a 25/64" wide half round bead and a 3/16" broad line segment with a 3/64" eased edge on the right side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.188
Depth of Cut: 0.550
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$195.78
Not Needed
Total:
$195.78
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$207.53
Not Needed
Total:
$207.53
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$225.16
Not Needed
Total:
$225.16
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
