Base Cap 2-3/16" - 1

Base Cap 2-3/16" - 1

Base Cap 2-3/16" - 1

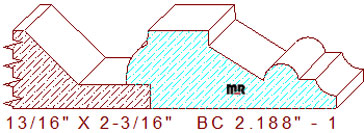

This rabbeted base cap 2-3/16" - 1 measure 2.188" wide by .812" thickness, allowing the detail to be milled from four-quarter lumber. The stylish profile composes an 11/32" quarter round above the 1/4" wide by 1/4" deep rabbet on the left, connected to a 9/16" wide by 1/8" tall raised fillet transitioning to a 19/32" broad down-sloping line, merged with a 7/16" wide half round bead and an 11/64" broad line segment with a 7/32" cove on the right side of the pattern. Check out our panel moulding category; we offer hundreds of other profile designs that would make a beautifully embellished base cap.

On the left set of blades, we utilize a full 2.375"/60mm cutter head for the rabbet; this allows for multiple axial adjustments on a wide range of patterns.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.250
Top Cutter Head
Width: 2.188
Depth of Cut: 0.680
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$161.75
$201.65
Not Needed
Total:
$363.40
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$171.25
$213.40
Not Needed
Total:
$384.65
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$180.75
$225.16
Not Needed
Total:
$405.91
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
