Base Cap 2-1/4" - 6
Base Cap 2-1/4" - 6

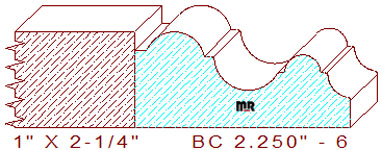

This attractive base cap 2-1/4" - 6 measures 2.250" wide by 1.000" thickness, enabling the pattern to be machined out of five-quarter lumber. The lovely profile is composed of a 1/8" broad horizontal line segment at a 13/16" thickness dimension on the top left, this forms a quirk when applied to a piece of surfaced four sides lumber (S4S), connected to a 19/32" wide half-circle. A 7/64" wide fillet that transitions into a 21/32" wide scotia in the center, attached to a 3/8" wide half-round bead bordered by two small fillets joined to a 1/4" cove with a 3/64" eased edge leaving a 5/16" thickness measurement on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.250
Depth of Cut: 0.859
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$211.00
Not Needed
Total:
$211.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$223.00
Not Needed
Total:
$223.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$241.00
Not Needed
Total:
$241.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
