Base Cap 2-5/16" - 5

Base Cap 2-5/16" - 5

Base Cap 2-5/16" - 5

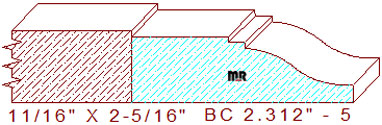

This tiered base cap 2-5/16" - 5 measures 2.312" wide by .687" thickness, enabling the pattern to be milled from four-quarter lumber. The decorative profile is comprised of a 1-1/64" broad horizontal line segment with two 1/16" deep drops in elevation, attached to a tangent 13/16" and a 7/8" radius that creates the ogee/cyma reversa on the right side of the pattern.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.312
Depth of Cut: 0.500
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$196.10
Not Needed
Total:
$196.10
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$208.35
Not Needed
Total:
$208.35
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$220.60
Not Needed
Total:
$220.60
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
