Base Cap 2-3/8" - 1

Base Cap 2-3/8" - 1

Base Cap 2-3/8" - 1

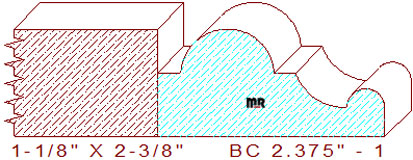

This bold baseboard cap 2-3/8" - 1 measure 2.375" wide by 1.125" thickness, necessitating the use of five-quarter lumber for milling on an industrial-style molder. The custom profile is composed of a 1/4" broad line segment at an 11/16" thickness dimension on the left, this creates a quirk when applied to a piece of S4S (surfaced four sides) lumber illustrated in the image above, connected to a 31/32" wide half circle flanked by a 15/64" wide fillet in the center, attached to a 35/64" cove that transitions into a 25/64" wide half round bead on the right side of the design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.375
Depth of Cut: 0.937
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$211.75
Not Needed
Total:
$211.75
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$224.25
Not Needed
Total:
$224.25
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$236.75
Not Needed
Total:
$236.75
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
