Base Cap 2-3/8" - 5
Base Cap 2-3/8" - 5

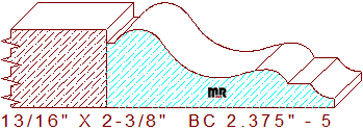

This fancy base cap 2-3/8" - 5 measures 2.375" wide by .812" thickness, permitting the detail to be cut out of four-quarter lumber. The attractive profile is composed of a 5/64" broad line segment at a 43/64" thickness dimension on the top left, this creates a quirk when applied to a piece of surfaced four sides lumber (S4S), connected to a down-sloping four tangent radius wave-like curve using a combination of concave and convex semicircular arcs in the center, merged to a 1/4" broad flat line and a 9/32" cove leaving a 3/32" thickness dimension on the right side of the design. You may want to review our plant-on and panel moulding categories for other appealing base cap options.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.375
Depth of Cut: 0.719
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$218.00
Not Needed
Total:
$218.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$230.50
Not Needed
Total:
$230.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$249.25
Not Needed
Total:
$249.25
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
