Base Cap 2-3/8" - 7
Base Cap 2-3/8" - 7

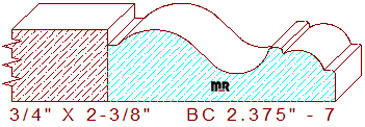

This decorative base cap 2-3/8" - 7 measures 2.375" wide by .750" thickness, allowing the detail to be machined from four-quarter lumber. The beautiful profile is composed of a 7/64" wide line segment at a 19/32" thickness dimension on the left, this creates a quirk when applied to a piece of S4S (surfaced four sides) lumber, connected to a graceful two tangent radius cyma reversa that joins to a small raised fillet in the center, attached to a 19/32" radius ovolo leaving a 5/16" thickness dimension on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.375
Depth of Cut: 0.621
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$205.50
Not Needed
Total:
$205.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$218.00
Not Needed
Total:
$218.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$236.75
Not Needed
Total:
$236.75
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
