Base Cap 2-9/16" - 1
Base Cap 2-9/16" - 1

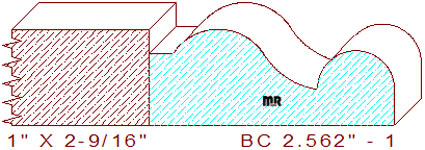

This vintage base cap 2-9/16" - 1 measures 2.562" wide by one-inch thickness, requiring the use of five-quarter lumber for milling on an industrial molder. The classic profile is composed of a 1/4" wide by 1/4" deeply sunk fillet at a 3/4" thickness dimension on the left, attached to a 9/16" convex arc tangent to a 13/16" concave semicircle creating the graceful cyma reversa in the center, joined to a 13/16" wide half-circle on the right side of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.562
Depth of Cut: 0.781
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$228.47
Not Needed
Total:
$228.47
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$241.72
Not Needed
Total:
$241.72
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$261.59
Not Needed
Total:
$261.59
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
