Base Cap 2-9/16" - 2

Base Cap 2-9/16" - 2

Base Cap 2-9/16" - 2

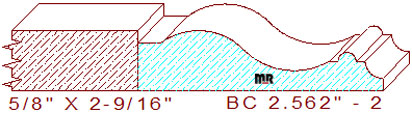

This colonial base cap 2-9/16" - 2 measures 2.562" wide by .625" thickness, permitting the detail to be machined out of four-quarter lumber. The traditional profile is comprised of a 1/4" wide by 1/8" deep sunk fillet at a 1/2" thickness dimension on the left-center, attached to a 21/32" convex arc tangent off of a 3/4" concave semicircle creating the smooth elevation changing cyma reversa in the middle, merged to a 3/16" wide half round bead flanked by 3/32" broad line segments with a 3/16" cove, leaving a 1/8" thickness dimension on the right side of the design.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.562
Depth of Cut: 0.500
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$208.60
Not Needed
Total:
$208.60
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$221.85
Not Needed
Total:
$221.85
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$235.10
Not Needed
Total:
$235.10
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
