Base Cap 2-5/8" - 2
Base Cap 2-5/8" - 2

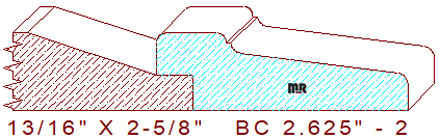

This base cap 2-5/8" - 2 measures 2.625" wide by .812" thickness. The profile consists of a 23/32" broad horizontal line with 3/32" radius edges, joined to a 3/64" wide fillet and a small 1/8" cove that angles down to a thickness of just under 3/8" with a 1/8" radius edge. The rabbet on the backside measures 3/8" wide by 3/8" tall, this is adjustable to any desired height with a simple axial movement of the left cutter head.
Need this profile template and a set of knives quickly? We generally can have these cutters ground with any one of our premium quality high-speed steels or carbide and shipped within twenty-four hours. We have artistic profiles from several architectural eras; thousands of compelling designs help match your creative style.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.375
Top Cutter Head
Width: 2.625
Depth of Cut: 0.697
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$166.50
$232.00
Not Needed
Total:
$398.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$176.00
$245.50
Not Needed
Total:
$421.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$190.25
$265.75
Not Needed
Total:
$456.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
